Overview

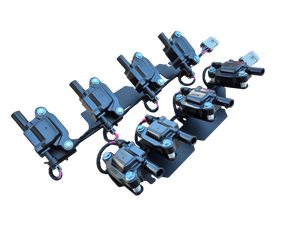

This pair of coil bracket assemblies come completely assembled, tested and ready to install with #12570616 D510C LS/LT Coils. The main coil harness connector is positioned at the rear of the engine out of sight. Coil brackets are made from aluminum and are powder coated jet black.
The brackets are designed to put the coils in a "flat" position. However the brackets can also be manipulated to angle the coils up/down as needed to achieve desired angle that might best fit customer installation and/or preference.
These brackets are compatible with all platforms, emissions piping/hoses, PCV valve, oil cap and other items commonly found on LT1 engines. Very tall aftermarket valve covers may present space issues on F-Body installations due to tight clearance to windscreen cowl.
Whats Included:
LH & RH Coil Brackets w/ Integrated Coil Harnesses
Eight(8) New #12570616 D510C LS/LT Coils
Installation Snapshot:
The brackets are designed to bolt to LTx valve covers using the valve cover bolts. Also included is small plastic washers to act as seal between coil bracket and valve cover. Simply remove to valve cover bolts, position, and refasten the valve cover bolts. Once mounted connect each coil bracket assembly to your harness coil bank connectors
